Print bar code label
|
|

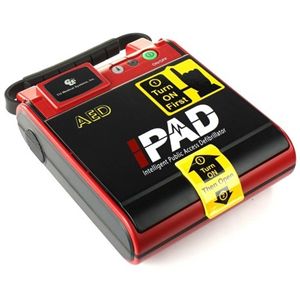

IPAD DEFIBRILLATOR WITH VOICE GUIDE NF1200
Unit Of Sale: EACH
Manufacturers Code: NF1200
Medent Code: 41191
Brand: I PAD
Features
- Can be used by Lay Rescuer With phased voice guidance
- Easy to carry (Light weight, Small)
- Easy to manage, Especially in the Public Access Defibrillation (PAD) setting
Physical
- Size: 220 × 60 × 70mm (Width × Length × Height)
- Weight: 2.2kg (Including the battery pack and pads)
Defibrillator
- Operating Mode: Semi-automated
- Waveform: e-cube biphasic (Truncated exponential type)
- Output Energy 200 J at 50 A
- Self-Diagnostic Test
- Protocol: Voice prompts and indicators guide the user throughout a rescue operation
- Controls: Power On/Off Button, i-Button, Shock Button
- Indicators: 7 color State LED, Graphical Rescue Guide LED
Self-Diagnostic Test
Auto - Power On Self-Test, Run-time Self-Test
- Daily, Weekly, and Monthly Self-Test
ECG Analysis System
Function: Determines the impedance of the patient and evaluates the ECG
of the patient to determine whether it is shockable or non shockable
Impedance Range: 50Ω to 175Ω
Defibrillator Pads
self-adhesive, disposable, non-polarized defibrillation pads
Disposable Battery Pack
- Battery Type: 12V DC, 4.2Ah LiMnO2, Disposable
- Capacity: At least 200 shocks for a new battery or 8 hours of operating time at room
Data Storage and Transfer
- InfraRed: Wireless transmission of event data to PC through IrDA port
- Data Stored: First 40 minutes of ECG and the entire incident's events and analysis decisions
|
