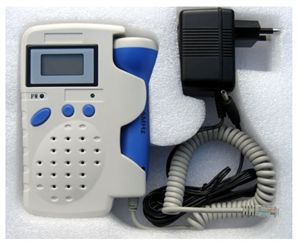

DOPPLER FETAL PORTABLE ULTRASOUND
Unit Of Sale: EACH
Manufacturers Code: MD800C2
Medent Code: 38500
Brand: MRS
Description:
Foetal Doppler - light weight and portable ultrasound.
The portable ultrasound unit is a foetal doppler device for detection and analysis of foetal heart rate. - Hand-held design for portability & convenience
- Built-in speaker - clear audio output
- High sensitivity (can detect the pulse of a 12-week foetus)
- Large back-lit LCD clearly displays the foetal heart rate
- Simple operation
- Waterproof probe
- Interchangeable probes - supports 2.5Mhz, 3Mhz waterproof probes
- Solid and durable construction - anti-shock
- Rechargeable 9.6V Ni-MH battery pack with up to 10 hours operation on a full charge
Specifications:
Ultrasound Ultrasonic emitting frequency: 2.5MHz
Working mode: Continuous wave Doppler
Overall sensitivity at distance of 200mm from the face of the probe (Doppler frequency): 500ñ50Hz
FHR Measuring Range: 50-210bpm (beats per minute)
Resolution: 1bpm Accuracy: ñ3bpm
Target velocity: 10cm/s~40cm/s: 92.4dB
Spatial-peak temporal-peak acoustic pressure: 20.1kPa
Output power: 7.9mW
|
